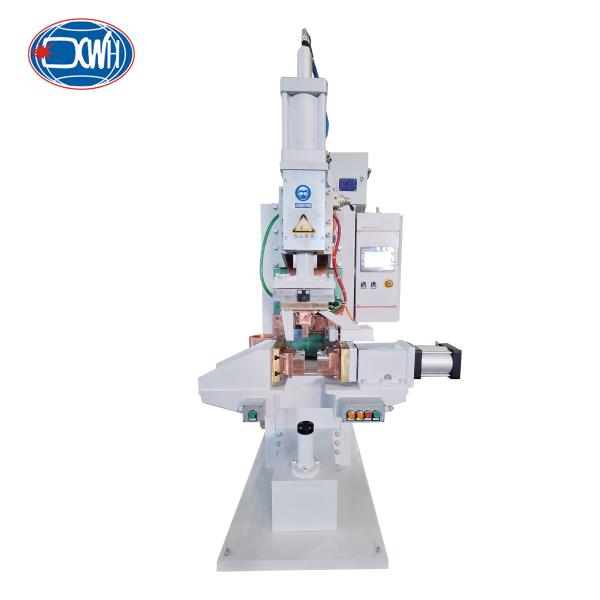

Point 100Kva Stationary Spot Welder Resistance Welding Machine For Shock Absorber
Product Introduction:
The projection welding machine is designed for welding shock absorber oil storage cylinder convex ring.Mainly composed of main frame, pneumatic transmission mechanism, horizontal welding mechanism, support components, secondary circuit, welding transformer, welding controller, water and gas circuit system and other components.
Welding Advantages:
1.The welding machine features a unique structural design, with its body engineered for impact resistance, shock absorption, and high rigidity. Precision mechanical machining ensures the installation and load-bearing strength of all components. The internal frame is reinforced with multiple welded ribs to enhance structural stability, minimizing deformation during welding. This guarantees both welding consistency and operator safety.
2.No need for filler metals such as welding wires and rods, as well as welding consumables such as chlorine, ethylene, hydrogen, etc., resulting in low welding costs.
3.Simple operation, easy to achieve mechanization and automation, low requirements for worker proficiency, and low labor intensity.
4.High productivity, low noise, and no harmful gases.
5.Can be used for convex welding of hoop rings.
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0
|
General Structures:
Detailed Images:
The Upper Electrode: The upper electrode is pressurized with an auxiliary cylinder, making stroke adjustment convenient and precise, allowing for continuous adjustment of the workpiece operation stroke.
Gas Storage Tank: The spare dedicated gas storage tank for welding machines is beneficial in reducing welding pressure fluctuations and ensuring stable welding force.
Production Line:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
