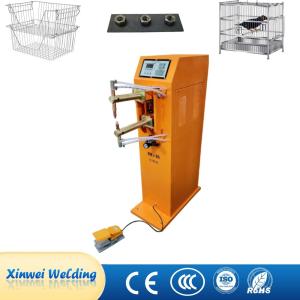

Soldador De Punto Resistance Metal Cnc Pneumatic Spot Welding Machine For Metal
Product Introduction:
Pneumatic spot welder machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.
Advantages:
1.The pneumatic spot welding machine is controlled by microcomputer circuit which has a high accuracy.
2. The fine adjustment of welding current can be controlled between 20% to100%.
3. The transmission rod is operated by foot, which is beautiful and durable while using.
4. The welding time is adjustable and the welding repeatability is excellent.
5. It can perform high-quality and efficient welding on medium and low carbon steel plates, metal plates of different thicknesses, round steel and round steel, small diameter wire rods, steel plates and workpieces, as well as various non ferrous metal shaped workpieces.
6. Widely used for spot welding of various thin plate structures, suitable for wire mesh processing, automotive component manufacturing, metal processing, mechanical manufacturing, handicraft welding, and other fields.
Technical Parameters:
| Product Welding Video | We provide technical guidance videos, product welding videos, and samples please contact us. |
| Overseas on-site technical team | South America, Southeast Asia,etc |
| One-stop service | Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip |
| Models Item | DN3-35 | DN3-25 | DN3-16 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA |
| Rated Primary Power | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A |
| Rated Duty Cycle | 10% | 10% | 10% |
| Model of the Controller | TCW-32H | TCW-32H | TCW-32H |
| Adjustment Rated | 1 | 4 | 4 |
| Arms Length | 400mm | 400mm | 400mm |
| 280mm | 280mm | 280mm |
| Max. Strength at Electrodes | 1400N | 1400N | 860N |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm |
| Cooling Way | MainTansiomer: Air Electrode: Water | MainTansiomer: Air Electrode: Water | MainTansiomer: Air Electrode: Water |
Images:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
